HDPE Flap Valve – Structure Analysis: 10 Considerations When Choosing

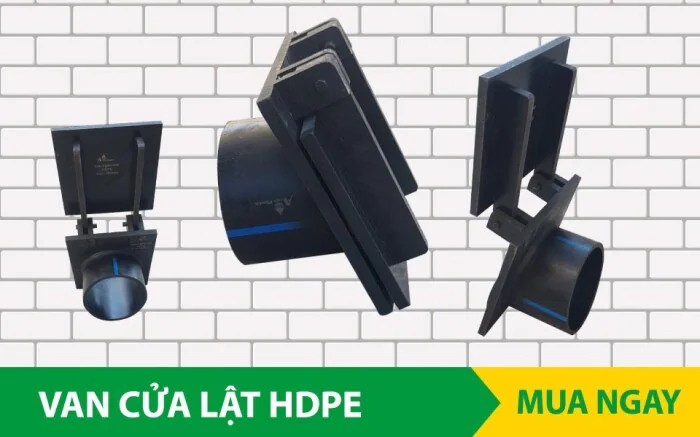

HDPE Flip Gate Valve

The HDPE Flip Gate Valve is a type of valve that uses a flip gate design to regulate the flow in pipe systems. Made from HDPE (High-Density Polyethylene), it offers flexibility, excellent corrosion resistance, and is suitable for a wide range of environments, from clean water and wastewater to light chemicals. With its simple structure and ease of operation, the HDPE Flip Gate Valve has become a popular choice in many industrial, agricultural, and civil applications.

Before delving into the detailed analysis of each component, we need to understand the benefits of using the HDPE Flip Gate Valve:

• High resistance to oxidation and corrosion thanks to the HDPE material.
• Good mechanical strength, able to withstand high pressures.
• Suitable for environments with high corrosion or chemical exposure.
• Easy installation, maintenance, and replacement.
• Reasonably priced compared to traditional metal valves.

With these factors in mind, the construction of the HDPE Flip Gate Valve must ensure optimal technical performance to take full advantage of these benefits. Next, we will analyze the components of the valve in detail.

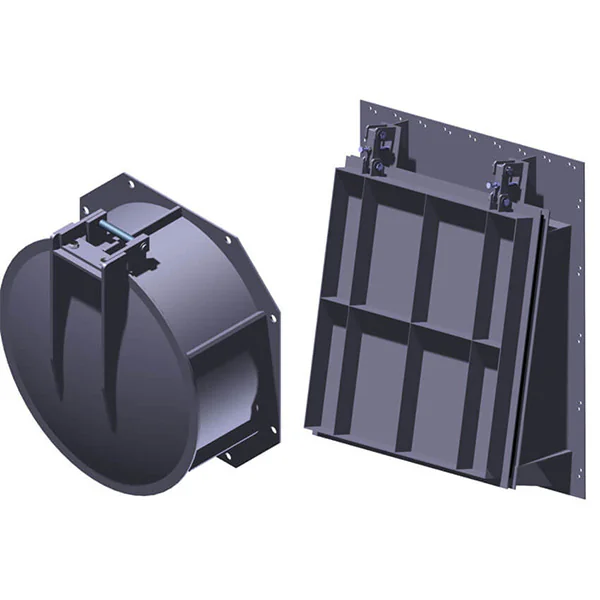

General Structure of the HDPE Flip Gate Valve

The structure of the HDPE Flip Gate Valve consists of key parts such as the valve body, valve gate, valve shaft, seals, and connection components. Each component plays an essential role in ensuring smooth operation, a tight seal, and a long lifespan of the valve.

The valve body is typically cast as a single piece or assembled from smaller parts, made from virgin HDPE, offering impact resistance, UV protection, and environmental durability. The valve gate is the main part responsible for controlling the opening/closing of the flow. It is typically rectangular or circular in shape, depending on the design, and is easy to operate, causing minimal flow loss. The valve shaft connects directly to the gate, secured by screws or couplings, facilitating easy opening and closing. The seal ensures the tightness of the valve, preventing leaks during operation.

Although each valve model may have a unique design, the basic structural principles remain the same, aiming to optimize performance and durability.

Main Components of the HDPE Flip Gate Valve

To gain a clearer understanding of the structure, let's dive deeper into each specific component of the HDPE Flip Gate Valve.

Valve Body

The valve body is the main part, housing other components and directly contacting the fluid flowing through the system. The HDPE material used for the valve body offers high resistance to corrosion, making it suitable for diverse environments, including acidic or alkaline environments. The valve body is typically cylindrical, with connections designed to meet pipeline standards, such as flanges, steel threads, or welding. Additionally, the valve body is precisely manufactured to ensure a tight connection, minimizing leakage during operation.

The body also contains partitions and drilled holes to secure internal components and make installation and dismantling easier, saving time during maintenance and repairs.

Valve Gate

The valve gate is the component that determines the opening/closing capability of the valve, directly affecting the flow control. In the structure of the HDPE Flip Gate Valve, the valve gate typically comes in a rectangular or circular shape, depending on the design and application. The gate is designed with the appropriate thickness to ensure good load-bearing capacity when opening or closing, preventing deformation or breakage during operation. The material used for the gate is typically HDPE or a suitable composite, enhancing impact resistance and wear resistance.

The design of the valve gate should ensure ease of operation and minimal flow obstruction, which is essential for improving the valve's performance.

Valve Shaft

The valve shaft connects the hand wheel or actuator mechanism to the valve gate. In the HDPE Flip Gate Valve, the shaft is made from durable materials such as stainless steel or high-strength plastic, ensuring long-lasting durability and corrosion resistance. The valve shaft must rotate smoothly to ensure quick and precise opening/closing operations. Additionally, the shaft is equipped with auxiliary components like bearings to reduce friction, extending the shaft's lifespan.

Choosing the appropriate material for the shaft is crucial for its ability to withstand pressure and temperature.

Seals

The seals play a critical role in ensuring the valve's tightness, preventing fluid or gas leakage during operation. In the construction of the HDPE Flip Gate Valve, the seals are typically made from materials such as EPDM rubber, NBR, or TPE, capable of withstanding chemicals and high temperatures. The seals are designed to fit precisely with the valve body and gate components, making installation and replacement easy when necessary. The seals' wear resistance, aging resistance, and ability to withstand high pressure help maintain a long-lasting tight seal, minimizing leakage risks and ensuring safety.

HDPE Flip Gate Valve

In the industry, especially in water treatment and chemicals, the HDPE Flip Gate Valve has proven its high application due to the outstanding features of HDPE material combined with optimal design. This valve type is suitable for regulating flow in systems that require high durability and resistance to abrasion and corrosion. Additionally, models like the HDPE Flip Gate Valve D200 offer suitable options for projects of different scales, from small to large.

These valve models are typically manufactured to international standards, ensuring high quality while meeting the safety and hygiene standards of sectors such as water supply, wastewater treatment, or light chemical industries.

Popular Types of HDPE Flip Gate Valves Today

Currently, the market offers various types of HDPE Flip Gate Valves, suitable for specific needs such as:

• Classic HDPE Flip Gate Valve
• HDPE Flip Gate Valve with flanges
• Large-sized HDPE Flip Gate Valves such as D200, D300
• HDPE Flip Gate Valves for special environments, such as heat and heavy chemical resistance

Choosing the right type of valve depends on factors such as system pressure, temperature, type of fluid or gas to be regulated, and the purpose of each project.

Advantages of HDPE Flip Gate Valves

• Good corrosion resistance: Not affected by oxidation, suitable for use in environments with high chemical corrosion.
• High durability: Can withstand strong impacts, operates continuously for long periods.
• Easy installation and maintenance: Simple design, convenient operation, and accessory replacement.
• Reasonable cost: Compared to metal valves, HDPE Flip Gate Valves have a low cost, making them suitable for many projects' budgets.
• Safe and hygienic: Does not pollute water sources or affect flow quality.

Limitations of HDPE Flip Gate Valves

• Not suitable for flow regulation in systems that require high-speed, precise control.
• Can deform if exposed to temperatures beyond the material's limit.
• Challenges in achieving precise adjustments in large sizes or requiring extremely tight seals.

HDPE Flip Gate Valve D200

Among the HDPE Flip Gate Valve types, the HDPE Flip Gate Valve D200 is one of the most popular models, suitable for systems requiring medium to large-scale operations. The D200 size represents the nominal diameter of the valve at 200mm, ideal for urban water supply and drainage systems, wastewater treatment plants, or other industrial flows.

Technical Specifications of HDPE Flip Gate Valve D200

• Suitable size: 200mm diameter, suitable for large, medium, or small systems.
• Pressure resistance: Can withstand high pressure, usually operating well at about 10 bar or more.
• Material: The entire valve body and gate are made from virgin HDPE, ensuring durability and corrosion resistance.
• Design tightness: EPDM or TPE rubber seals ensure no leaks during operation.
• Easy installation: Standard connections compatible with international standards.

Advantages of HDPE Flip Gate Valve D200

• Suitable for large systems requiring high durability and load-bearing capacity.
• Reduces maintenance costs due to HDPE material's excellent oxidation resistance.
• Optimized design for easy operation and fast action during operation or maintenance.
• Environmentally friendly, does not generate toxins during use.

Applications of HDPE Flip Gate Valve D200

• Urban water supply and drainage systems.
• Wastewater treatment in industrial zones.
• Natural and artificial irrigation systems.
• Small-scale irrigation and hydropower projects.
• Light chemical industry and clean water treatment plants.

Considerations when Choosing HDPE Flip Gate Valve D200

• Check system pressure to select the appropriate valve type.
• Choose the correct connection type to match the pipeline system.
• Ensure the seals are suitable for the fluid or gas being operated on.
• Choose a reputable supplier to ensure quality and after-sales service.

Conclusion

The construction of the HDPE Flip Gate Valve reflects optimization in design to fully leverage the outstanding features of HDPE material, such as corrosion resistance, high durability, and easy installation. Each component, including the valve body, gate, shaft, and seals, is meticulously crafted to ensure smooth operation, tight sealing, and long service life. Among these, the HDPE Flip Gate Valve D200 is an exemplary product suitable for large systems with requirements for high durability and pressure resistance. Understanding the structure and technical characteristics of these valves will help engineers and managers make informed decisions, optimize system operation efficiency, and minimize risks and maintenance costs during use.
